This topic describes the setting of desk lights.

To learn more about color themes, see Color Themes.

To access the Desk Lights Color Theme menu:

  1. Press Menu.
  2. Tap Desk Lights & Color Theme.
  3. The Desk Lights Color Theme menu opens.

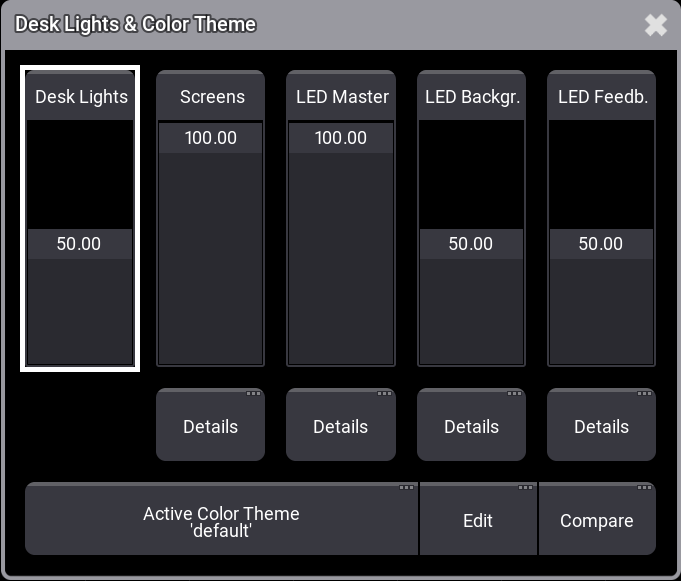

Desk Lights & Color Theme menu

  • Desk Lights:
     Move the fader up or down to adjust the desk light intensity.
  • Screens:
    Adjusts the overall brightness of all screens.
    • To adjust the brightness of individual screens, tap Details below the Screens fader. Then, move the respective screen fader up or down.
Restriction:
The Screen External fader currently has no function.
  • LED Master:
    Adjusts the overall intensity of all LEDs.
    • To adjust the LED intensity of the individual elements, tap Details below the LED Master fader.
  • LED Background:
     Adjusts the overall LED background intensity, such as for encoders and keys.
    • To adjust the LED background intensity of the individual elements, tap Details below the LED Master fader.
  • LED Feedback:
    Adjusts the intensity with which the LEDs respond to input.
    • To adjust the LED Feedback intensity of the individual elements, tap Details below the LED Feedback fader.
