TouchOSC

View .md Open in ChatGPT Open in Claude Official source ↗

TouchOSC is a modular OSC and MIDI control surface for Windows, macOS, and Android by hexler.net.

It supports sending and receiving Open Sound Control and MIDI messages over Wi-Fi, CoreMIDI inter-app communication, and compatible hardware.

For detailed information about TouchOSC, refer to their manual Getting Started · OSC.

Fader

Section titled “Fader”

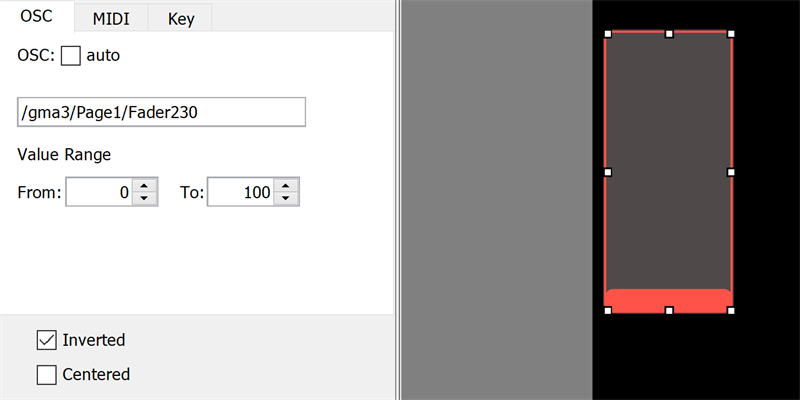

This example will control the fader of Executor 230 of Page 1:

Notes:

  • Assumes the OSCData line on the console is configured with a “gma3” prefix. If the prefix is empty, this would just be /Page1/Fader230.
  • Assumes the “Page” and “Fader” cells in the OSCData line on the console are set to “Page” and “Fader” respectively (this is the default).



Executor Button

Section titled “Executor Button”

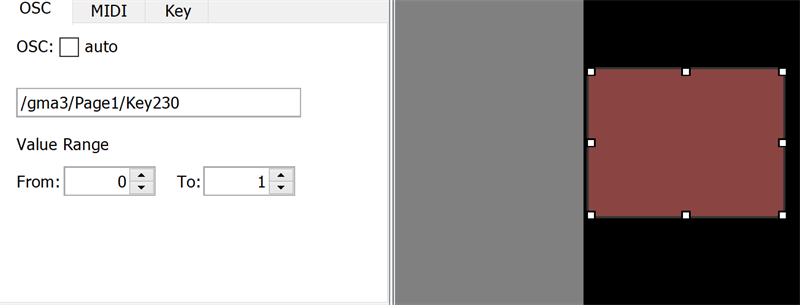

This example will press the button for Executor 230 of Page 1:

Notes:

  • Assumes the OSCData line on the console is configured with a “gma3” prefix. If the prefix is empty, this would just be /Page1/Key230.
  • Assumes the “Page” and “Key” cells in the OSCData line on the console are set to “Page” and “Key” respectively (this is the default).
  • The {Send on Press} and {Send on Release} settings (not pictured above) should both be enabled/checked.
