Devices with powerCON Connector or powerCON TRUE1 TOP Connector

Section titled “Devices with powerCON Connector or powerCON TRUE1 TOP Connector”
Warning: If only the powerCON TRUE1 connector or powerCON TRUE1 TOP connector is provided, connect a suitable cable to the connector. To connect a suitable cable to the powerCON TRUE 1 connector or powerCON TRUE1 TOP connector, contact the local distributor.
  1. Insert the powerCON TRUE1 connector or powerCON TRUE1 TOP connector in the powerCON TRUE1 plug or powerCON TRUE1 TOP plug and twist it to lock clockwise.
    An audible click is heard.
  2. Connect the other end of the cable to a suitable power source.

Devices with IEC Connector

Section titled “Devices with IEC Connector”
  1. Insert the IEC connector into the corresponding jack.
  2. Connect the power plug.

The device is connected to power.

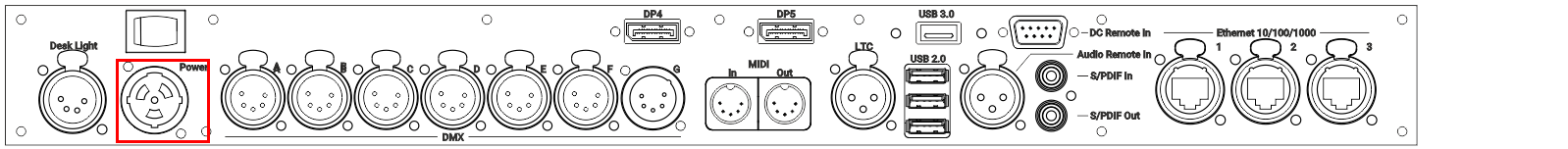

grandMA3 full-size (CRV) and light (CRV) rear panel – power

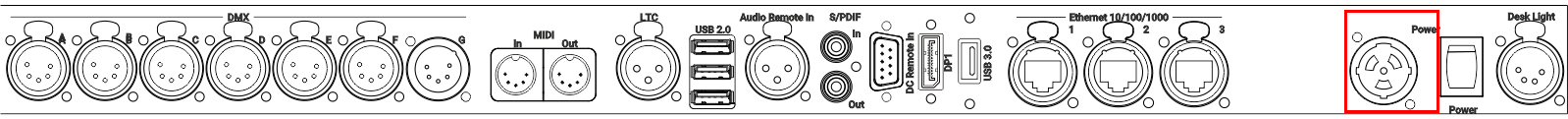

grandMA3 compact (XT) rear panel – power

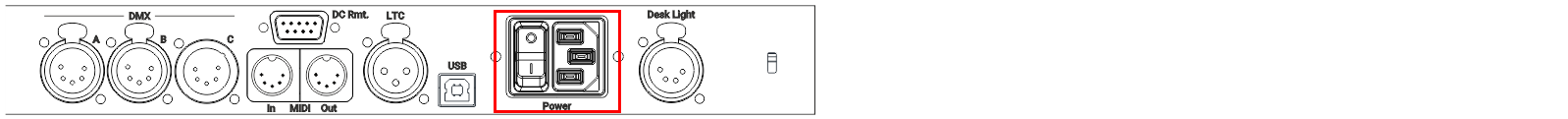

grandMA3 onPC command wing (XT) rear panel – power

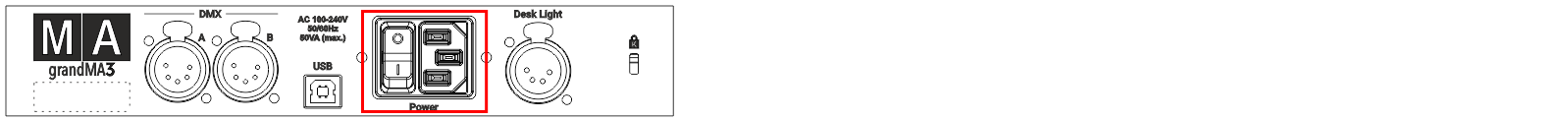

grandMA3 fader wing rear panel – power

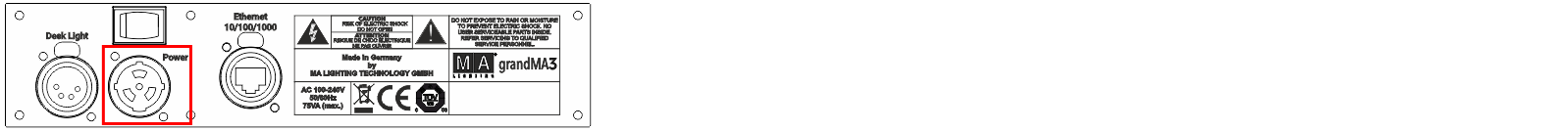

grandMA3 extension rear panel – power

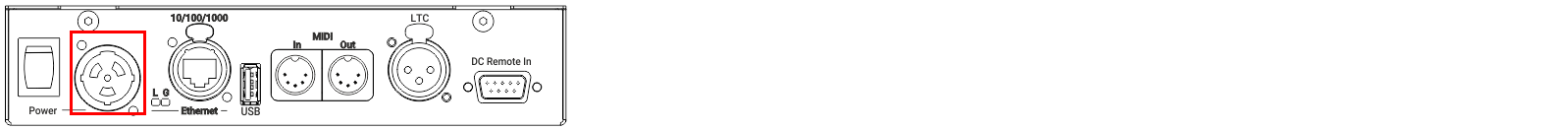

_grandMA3 I/O Node rear panel – _power
