Technical Data

	Important: Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²). The required power cable must meet the country’s standards. Only qualified personnel is allowed to perform work on the power cable!

	Important: Power cable and connector are not included in the delivery.

• DMX: The maximum length of the cable is 350 m (in ideal conditions).

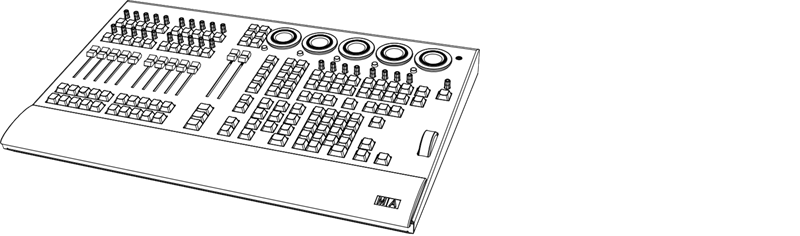

grandMA3 onPC command wing XT front panel

Technical Data
Parameters	4 096
Parameters Mode2	not applicable (no Mode2)
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	12 kg / 27 lbs
Power	max. 100 VA
Dimensions	620 x 427 x 112 mm / 24 x 17 x 5 in



Outputs grandMA3 onPC command wing XT

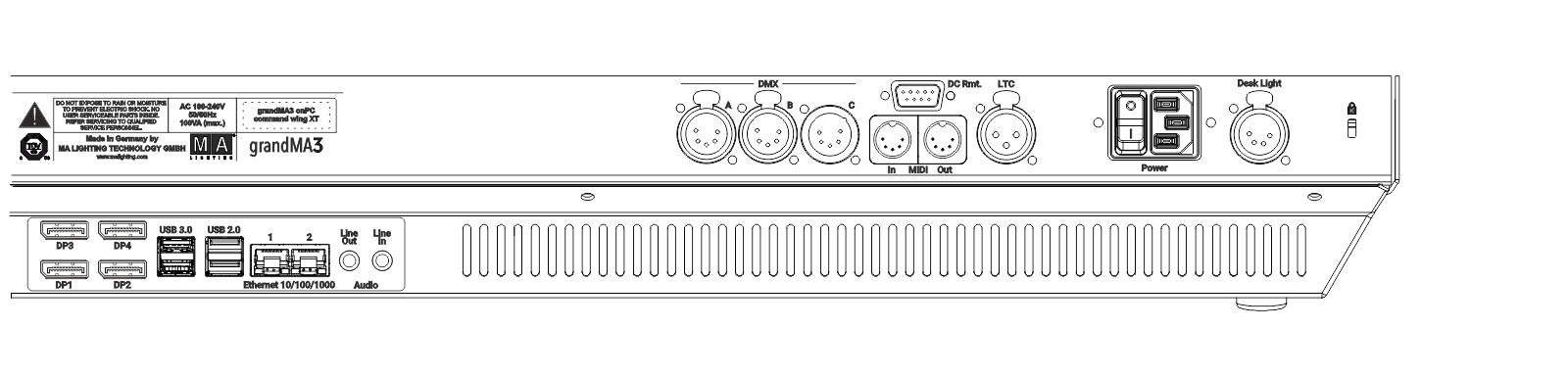

grandMA3 onPC command wing XT rear panel

Number	Connector
4x	DisplayPort 1.2 for external screens
2x	RJ 45
2x	USB 3.0 (type A) max. 900 mA
2x	USB 2.0 (type A) max. 500 mA
1x	Audio In (mini jack 3.5mm)
1x	Audio Out (mini jack 3.5mm)
2 x	DMX512-A OUT (5pin XLR female)
1 x	DMX512-A IN (5pin XLR male)
1 x	MIDI IN (5pin DIN female)
1 x	MIDI OUT (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
1x	IEC connector
1 x	LED desk light (4pin XLR female)
