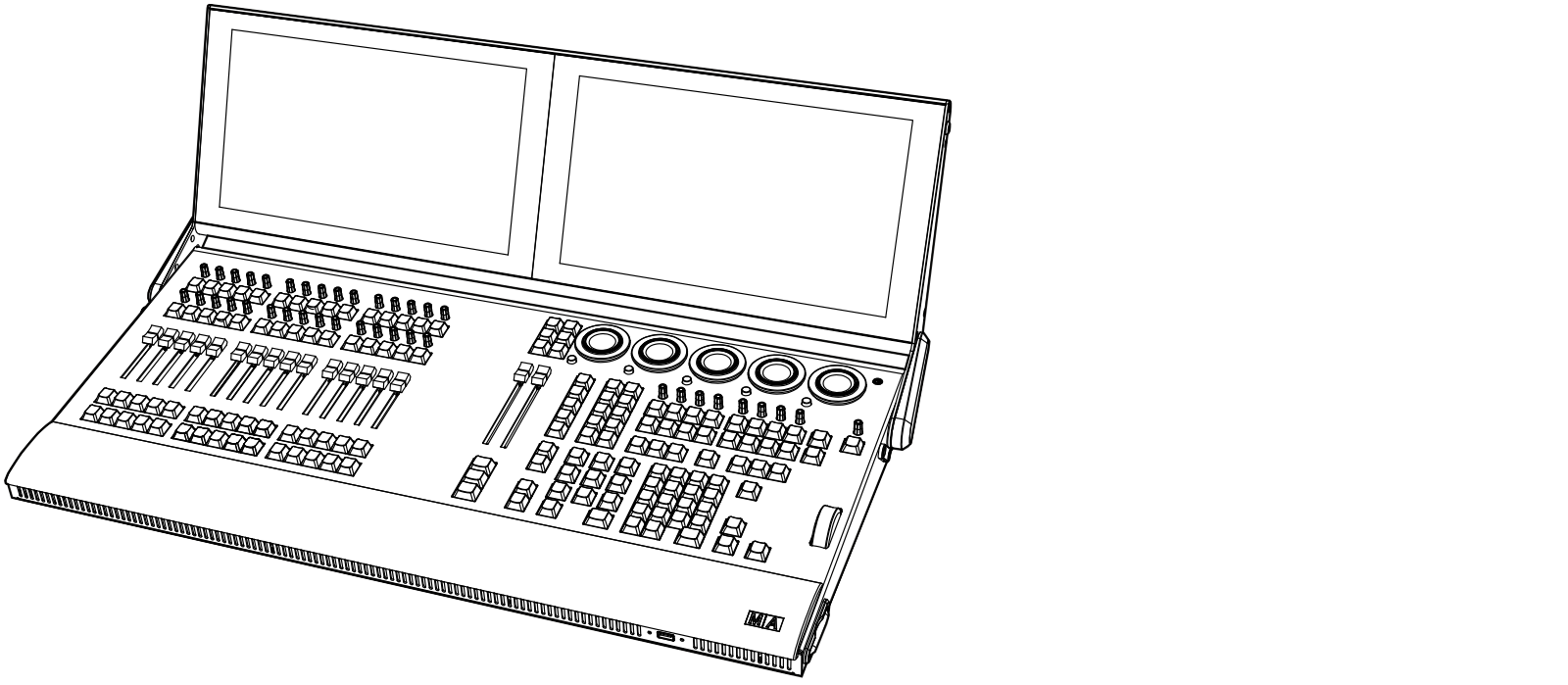

grandMA3 compact XT

View .md Open in ChatGPT Open in Claude Official source ↗

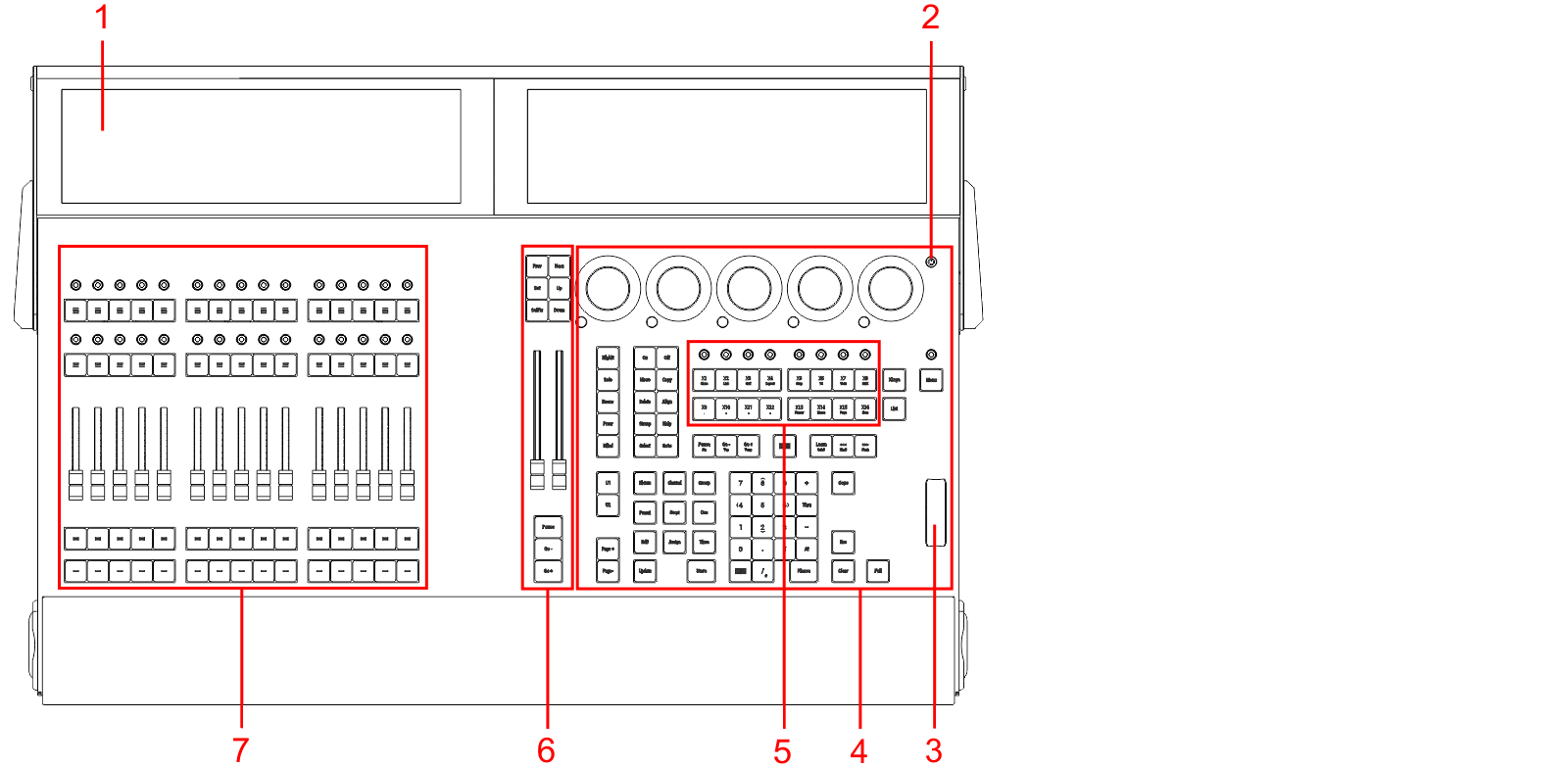

grandMA3 compact XT front panel

  1. Screens 1+2
  2. Power key
  3. Level wheel
  4. Command section
  5. Xkeys
  6. Master section
  7. Executor section

Update this description text.

grandMA3 compact XT rear panel

  1. DMX-512-A A-F (5pin XLR female) + G (5pin XLR male)
  2. MIDI In+Out
  3. LTC
  4. USB 2.0
  5. Audio Remote In
  6. S/PDIF In+Out
  7. DC Remote Control
  8. DisplayPort 1
  9. USB 3.0
  10. Ethernet 1-3
  11. powerCON TRUE1
  12. Power switch
  13. Desk light

For technical specifications, see Technical Data in the grandMA3 Quick Manual consoles.
