Connect MIDI

MIDI connectors can be used for MIDI input or output. For example, to send the MIDI timecode signal to the sound engineer.

Location of MIDI Connectors on Different Products

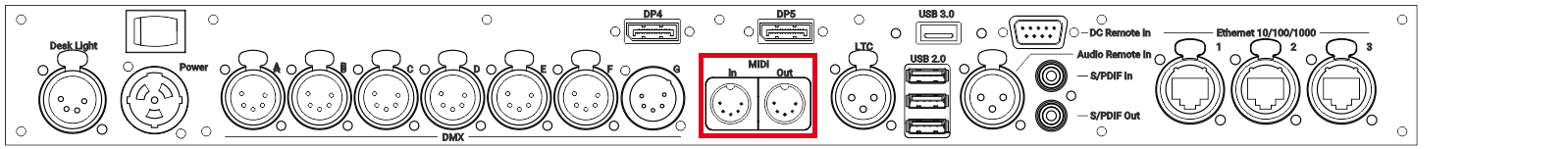

grandMA3 full-size (CRV) and light (CRV) rear panel – MIDI

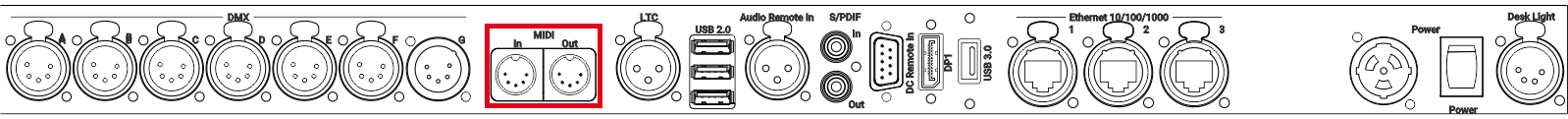

grandMA3 compact (XT) rear panel – MIDI

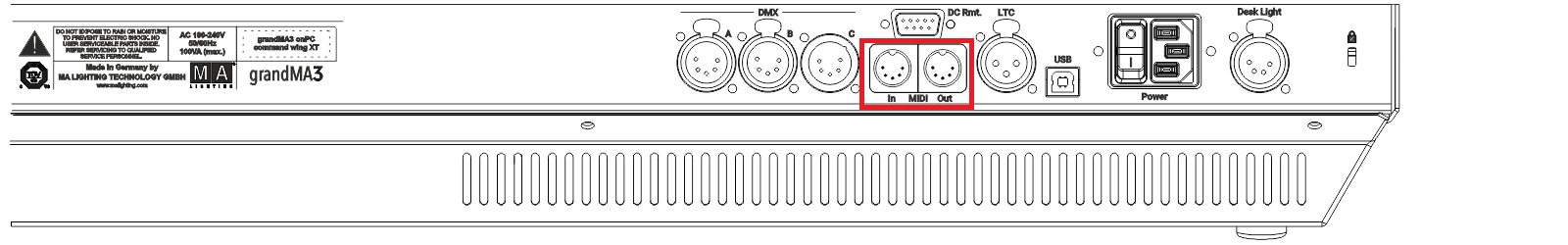

grandMA3 onPC command wing (XT) rear panel – MIDI

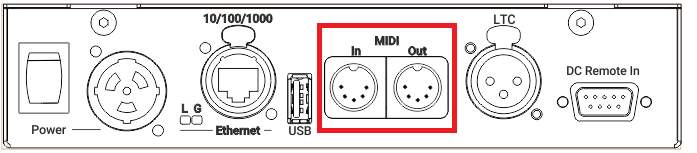

grandMA3 I/O Node rear panel – MIDI

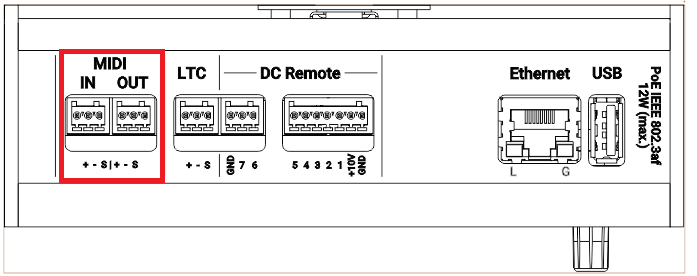

grandMA3 I/O Node DIN-Rail top panel – MIDI

	Hint:
	For more information on DIN and Euroblock connector pinout, see Connector Pin Assignment.
