Connect Audio In

View .md Open in ChatGPT Open in Claude Official source ↗

To use a sound trigger or BPM, connect a sound source to the grandMA3 device. For more information about sound, see the Sound topic.

Hint:
The signal strength should be at least 50 mV.

Connect the 3pin XLR sound source cable to the Audio Remote In connector on the rear panel.

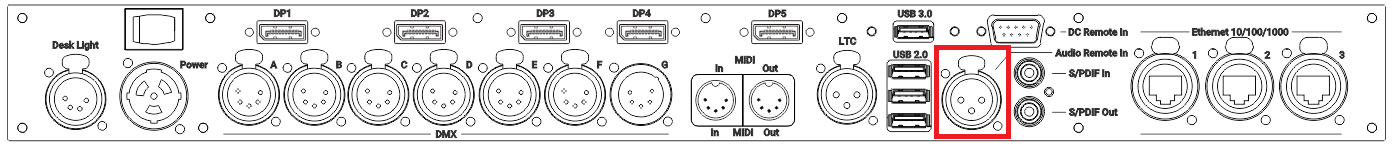

grandMA3 full-size rear panel – Audio Remote In

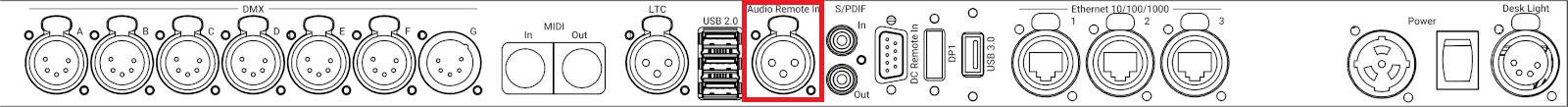

grandMA3 compact (XT) rear panel – Audio Remote In

Update this description text.

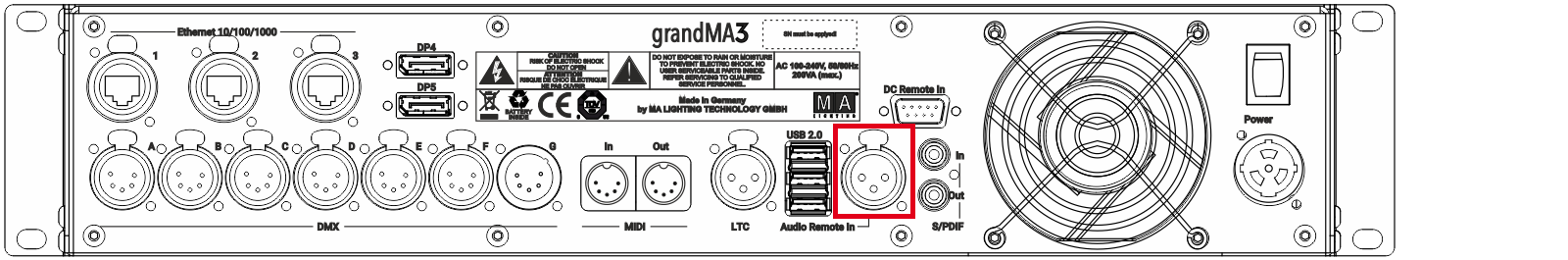

grandMA3 replay unit - Audio Remote In

To view the pinout of the XLR connector, refer to the topic Connector Pin Assignment.
