Technical Data
 | Hint: grandMA3 nodes DIN-Rail are powered by a direct power connection using a terminal block connector, a PoE switch, or a PoE injector. |
 | Important: Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²). The required power cable must meet the country’s standards. Only qualified personnel is allowed to perform work on the power cable! |
| Important: Use the USB port for updates only. Do not connect any peripheral devices (for example, mouse, keyboard). Each 3pin DMX512-A Out can be individually configured as DMX In. |
- DMX: The maximum length of the cable is 350 m (in ideal conditions).
- Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.

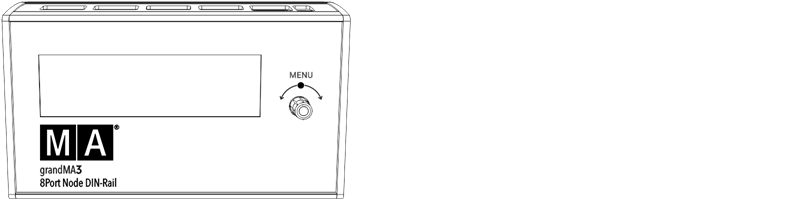

grandMA3 8Port Node DIN-Rail front panel
grandMA3 8Port Node DIN-Rail
Section titled “grandMA3 8Port Node DIN-Rail ”| Technical Data | |
|---|---|
| Parameters | None |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
Outputs grandMA3 8Port Node DIN-Rail
Section titled “Outputs grandMA3 8Port Node DIN-Rail ”

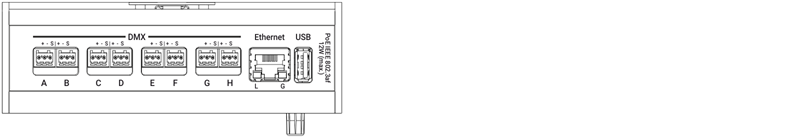

grandMA3 8Port Node DIN-Rail rear panel
| Number | Connector |
|---|---|
| 8 x | 3pin PCB connector (DMX512-A Out) |
| 1 x | RJ45 |
| 1 x | USB 2.0 (type A) |
grandMA3 4Port Node DIN-Rail
Section titled “grandMA3 4Port Node DIN-Rail”| Technical Data | |
|---|---|
| Parameters | None |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
Outputs grandMA3 4Port Node DIN-Rail
Section titled “Outputs grandMA3 4Port Node DIN-Rail”

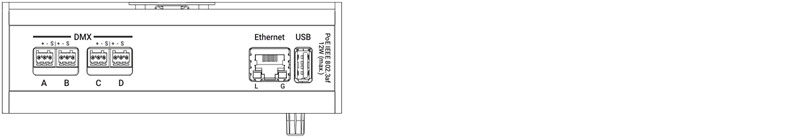

grandMA3 4Port Node DIN-Rail rear panel
| Number | Connector |
|---|---|
| 4 x | 3pin PCB connector (DMX512-A Out) |
| 1 x | RJ45 |
| 1 x | USB 2.0 (type A) |
grandMA3 2Port Node DIN-Rail
Section titled “grandMA3 2Port Node DIN-Rail”| Technical Data | |
|---|---|
| Parameters | None |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
Outputs grandMA3 2Port Node DIN-Rail
Section titled “Outputs grandMA3 2Port Node DIN-Rail”

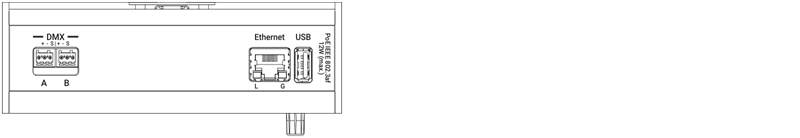

grandMA3 2Port Node DIN-Rail rear panel
| Number | Connector |
|---|---|
| 2 x | 3pin PCB connector (DMX512-A Out) |
| 1 x | RJ45 |
| 1 x | USB 2.0 (type A) |
grandMA3 onPC 8Port Node DIN-Rail 4k
Section titled “grandMA3 onPC 8Port Node DIN-Rail 4k”| Technical Data | |
|---|---|
| Parameters | 4 096 (HTP/LTP) |
| Parameters Mode2 | 2 048 (HTP/LTP) |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
grandMA3 onPC 4Port Node DIN-Rail 4k
Section titled “grandMA3 onPC 4Port Node DIN-Rail 4k”| Technical Data | |
|---|---|
| Parameters | 4 096 (HTP/LTP) |
| Parameters Mode2 | 2 048 (HTP/LTP) |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
grandMA3 onPC 2Port Node DIN-Rail 2k
Section titled “grandMA3 onPC 2Port Node DIN-Rail 2k”| Technical Data | |
|---|---|
| Parameters | 4 096 (HTP/LTP) |
| Parameters Mode2 | 1 024 (HTP/LTP) |
| Display | 3.9 ” TFT color |
| Operating voltage (electrical grid) | 100-240 V AC, 50/60 Hz |
| Operating voltage (PoE) | IEEE 802.3af 48 V DC/max. 12 W |
| Net weight | 1 kg / 3 lbs |
| Power | max. 15 VA |
| Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
