Connector Pin Assignment

View .md Open in ChatGPT Open in Claude Official source ↗

This page gives an overview of all connectors and their respective pinouts.

XLR Connectors

Section titled “XLR Connectors”

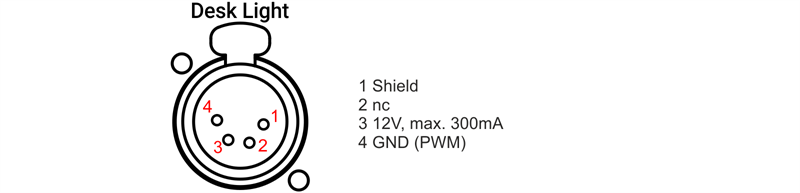

For more information, see Connect Desk Light.



Section titled “  ”

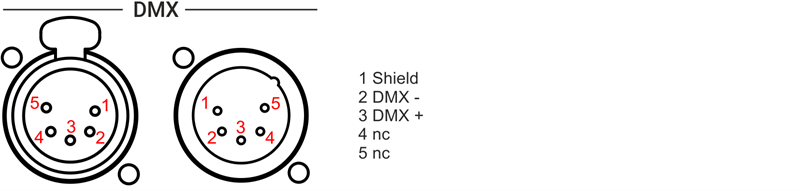

 For more information, see Connect DMX.

Section titled “”

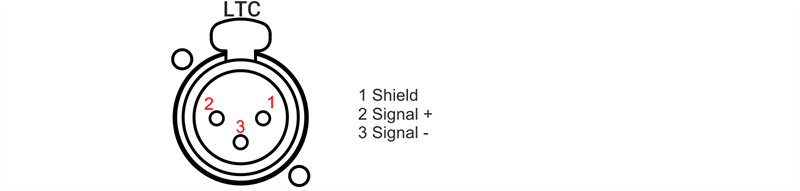

For more information, see Connect LTC.

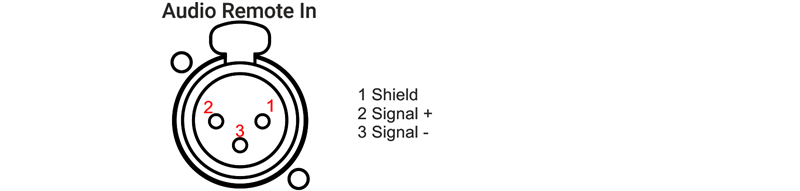

For more information, see Connect Audio In.

Section titled “”

D-Sub Connectors

Section titled “D-Sub Connectors”

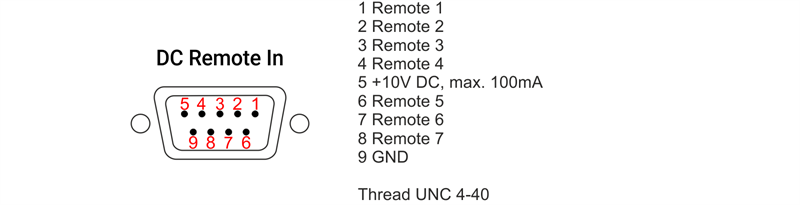

GPI for grandMA3 consoles,  grandMA3 onPC command wing, command wing XT
