Notes in Cues

The following example shows how to add a note to a cue. Notes, for example, can inform the operator of primary on-stage procedures to trigger the next cue. For information about cues, refer to the Cues and Sequences topic. Notes can also be displayed and edited in the Info window, see Info Window.

• Requirement: The grandMA3 demo show is loaded.

To add a note to a cue:

1. Open the Add window menu, tap Common, and then tap Sequence Sheet.

2. Tap and hold Link Type on the sequence sheet toolbar. From the dropdown menu, tap Selected.

3. Open the Sequence Pool window (See Add Window) and tap sequence 1 “Look”. Sequence 1 is now selected, or type in the command line:

   	User name[Fixture]>Select Sequence “Look”

   Or

   	User name[Fixture]>Select Sequence 1

4. Press Edit, then tap in a note cell in a cue; the text input editor opens. After finishing typing the note, tap Save or Please on the on-screen keyboard, or press Please.

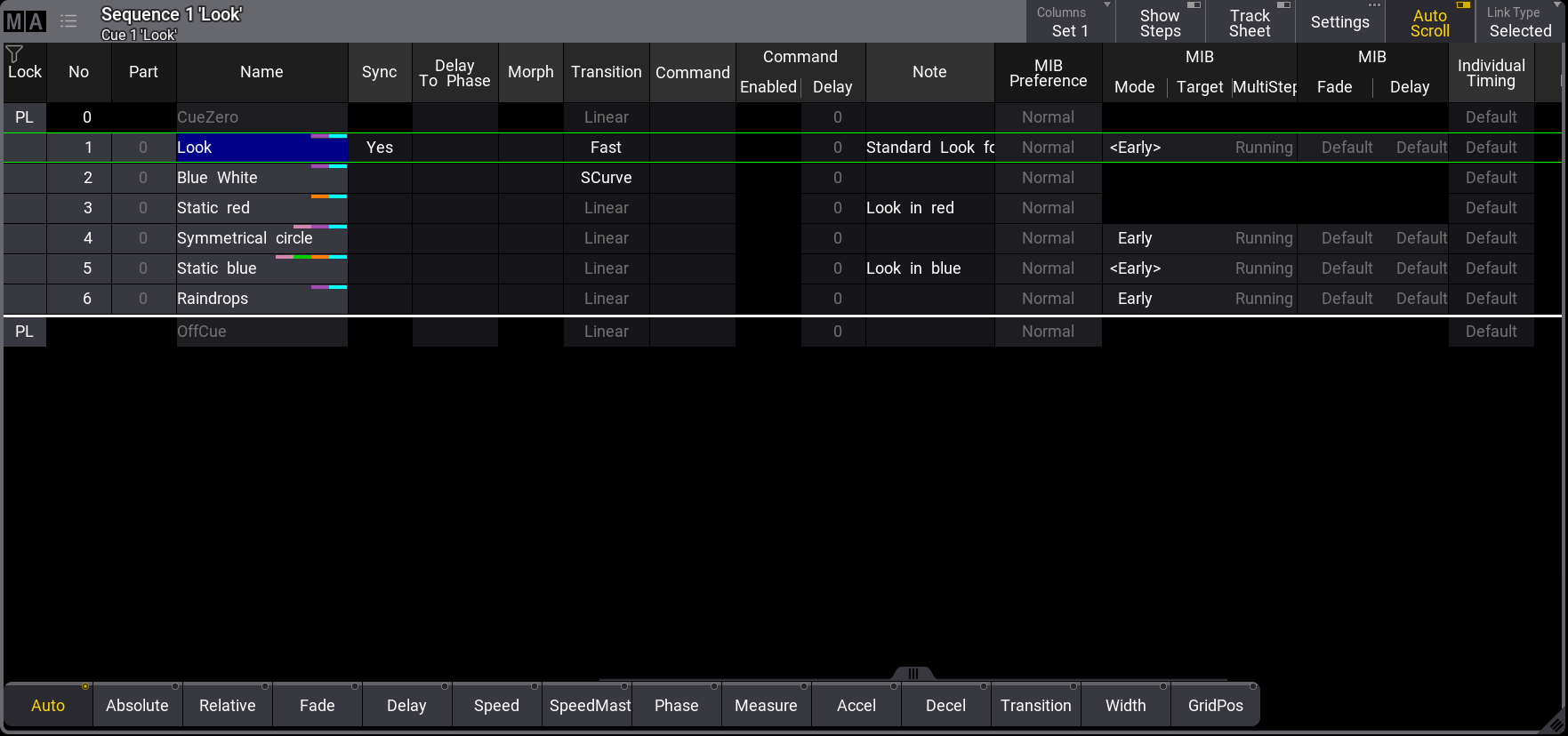

Sequence 1 with different Notes added.

---

Multi-Line Editor

The text editor in notes is a multi-line editor. Multiple lines can be added by pressing Shift + Please when the text editor is open. For more information about the text editor, see Text Input Editor.

---

Changing the Line Height

To change the line height manually:

1. Tap  MA on the top left corner of the sequence sheet, and the Sequence Sheet Settings opens.
2. Tap the Mask tab.
3. Tap Line Height. The line height of the sequence sheet changes.

	Hint:
	When Line Height is set to Auto, the row adjusts its height based on the number of lines. For more information about the sequence sheet settings, see Sequence Sheet.

The height of the rows is adjusted dynamically when Line Height is set to Auto.
