grandMA3 full-size

View .md Open in ChatGPT Open in Claude Official source ↗

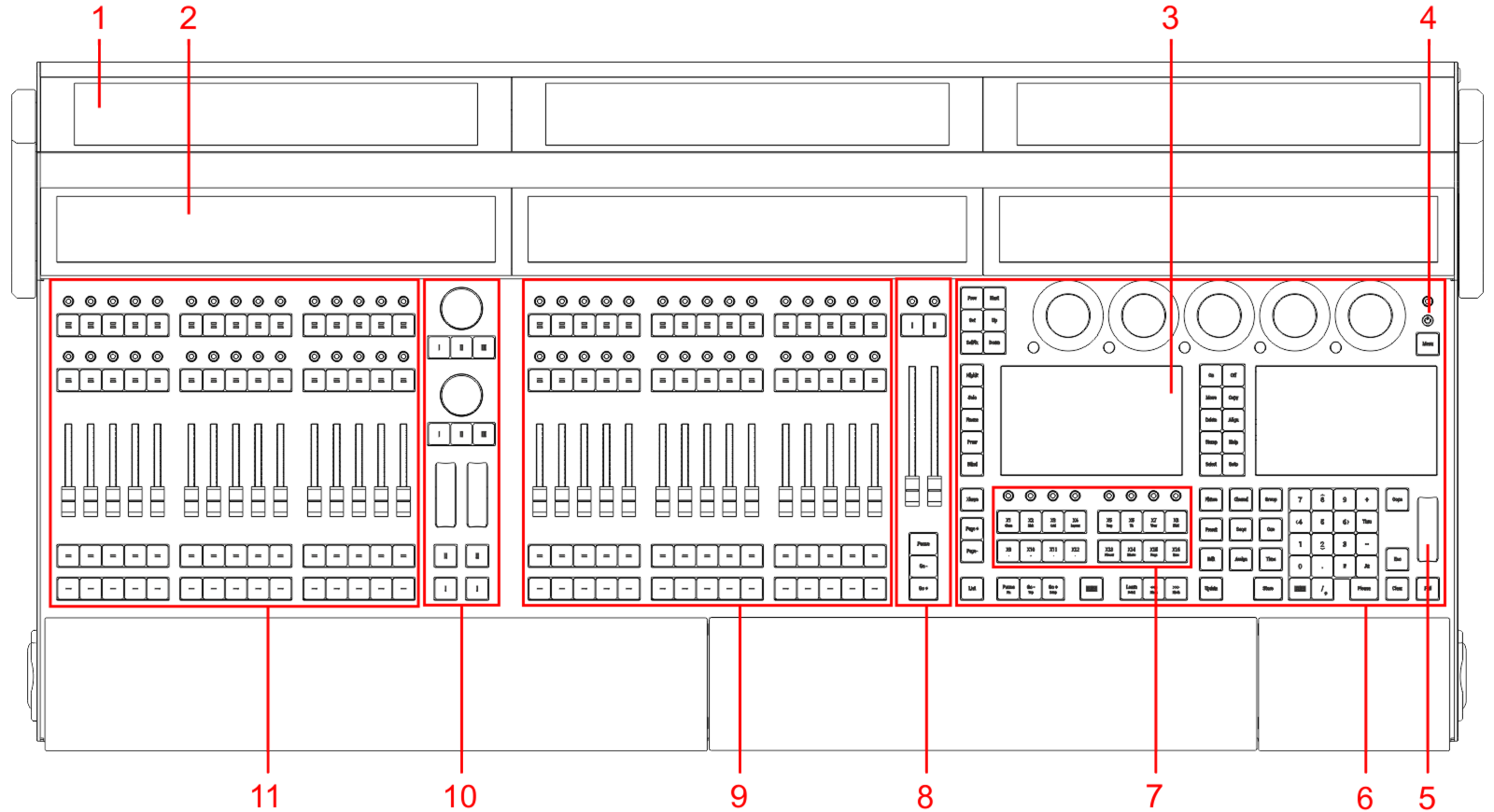

grandMA3 full-size front panel

  1. Screens 1-3
  2. Letterbox screens 8-10
  3. Command screens 6+7
  4. Power key
  5. Level wheel
  6. Command area
  7. Xkeys section
  8. Master area
  9. Right executor area with 3 executor sections
  10. Custom area
  11. Left executor area with 3 executor sections

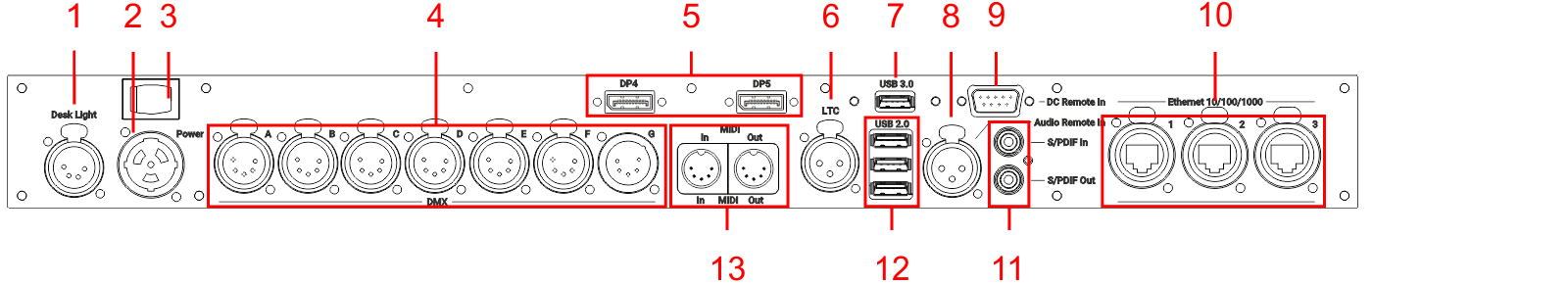

grandMA3 full-size rear panel

  1. Desk light
  2. powerCON TRUE1
  3. Power switch
  4. DMX-512-A A-F (5pin XLR female) + G (5pin XLR male)
  5. DisplayPort 4+5
  6. LTC
  7. USB 3.0
  8. Audio Remote In
  9. DC Remote Control
  10. Ethernet 1-3
  11. S/PDIF In+Out
  12. USB 2.0
  13. MIDI In+Out
Hint:
For command line and graphical user interface access to an image showing the connectors on the back of the console, see the DMX Port Configuration topic.

For technical specifications, see Technical Data in the grandMA3 Quick Manual consoles.
