grandMA3 light CRV

View .md Open in ChatGPT Open in Claude Official source ↗

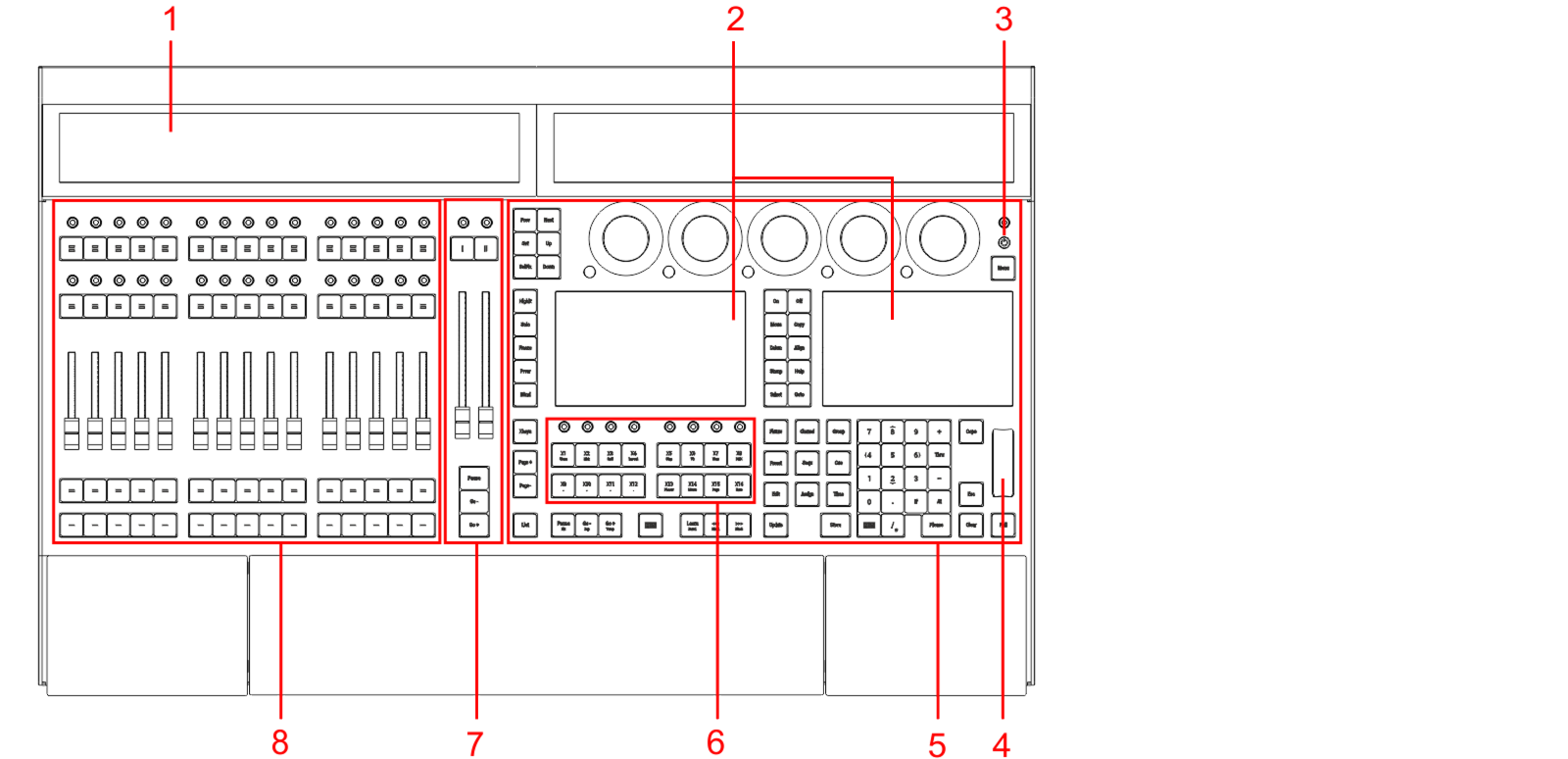

grandMA3 light CRV front panel

  1. Letterbox screens 8+9
  2. Command screens 6+7
  3. Power key
  4. Level wheel
  5. Command area
  6. Xkeys section
  7. Master area
  8. Executor area with 3 executor sections
Hint:
For command line and graphical user interface access to an image showing the connectors on the back of the console, see the DMX Port Configuration topic.

Update this description text.

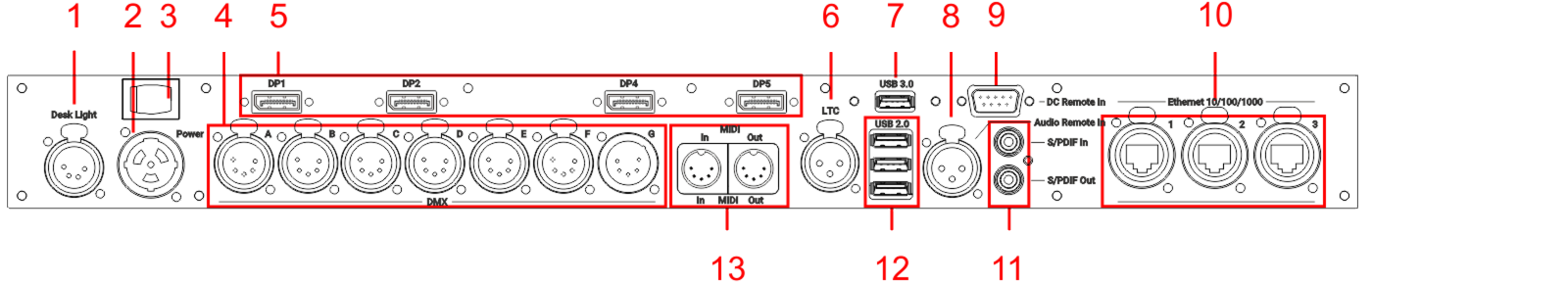

grandMA3 light CRV rear panel

  1. Desk light
  2. powerCON TRUE1
  3. Power switch
  4. DMX-512-A A-F (5pin XLR female) + G (5pin XLR male)
  5. DisplayPort 1+2+4+5
  6. LTC
  7. USB 3.0
  8. Audio Remote In
  9. DC Remote Control
  10. Ethernet 1-3
  11. S/PDIF In+Out
  12. USB 2.0
  13. MIDI In+Out

For technical specifications, see Technical Data in the grandMA3 Quick Manual consoles.
