Technical Data

	Important: Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²). The required power cable must meet the country’s standards. Only qualified personnel is allowed to perform work on the power cable!

	Important: Power cable and connector are not included in the delivery.

	Hint: The processing units M, L, XL have an equal front panel and rear panel.

• DMX: max. length of the cable 350 m (in ideal conditions).
• Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.

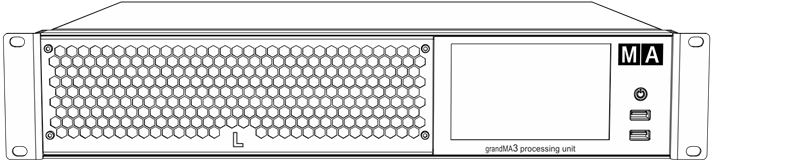

grandMA3 processing unit front panel

Technical Data grandMA3 processing unit M, L, XL
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	5 kg / 12 lbs
Power	max. 200 VA
Dimensions	482 x 372 x 87 mm / 19 x 15 x 4 in (width x depth x height)

Parameters
grandMA3 processing unit M	4 096
grandMA3 processing unit L	8 192
grandMA3 processing unit XL	16 384

Outputs grandMA3 processing unit M, L, XL

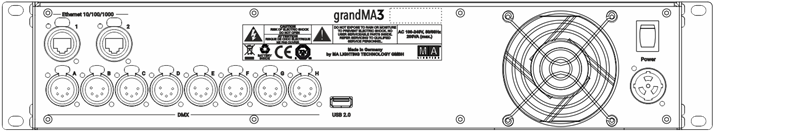

grandMA3 processing unit rear panel

Number	Connector
1 x	powerCON TRUE1 (registered trademark of Neutrik AG, Liechtenstein)
2 x	etherCON/RJ45
8 x	DMX512-A OUT (5pin XLR female)
3 x	USB 2.0 (type A)
