Create a Layout

Layouts are created in the Layout pool and can be edited in the Layout window or the Layout editor.

Default layout elements can be defined in the Preferences and Timings menu:

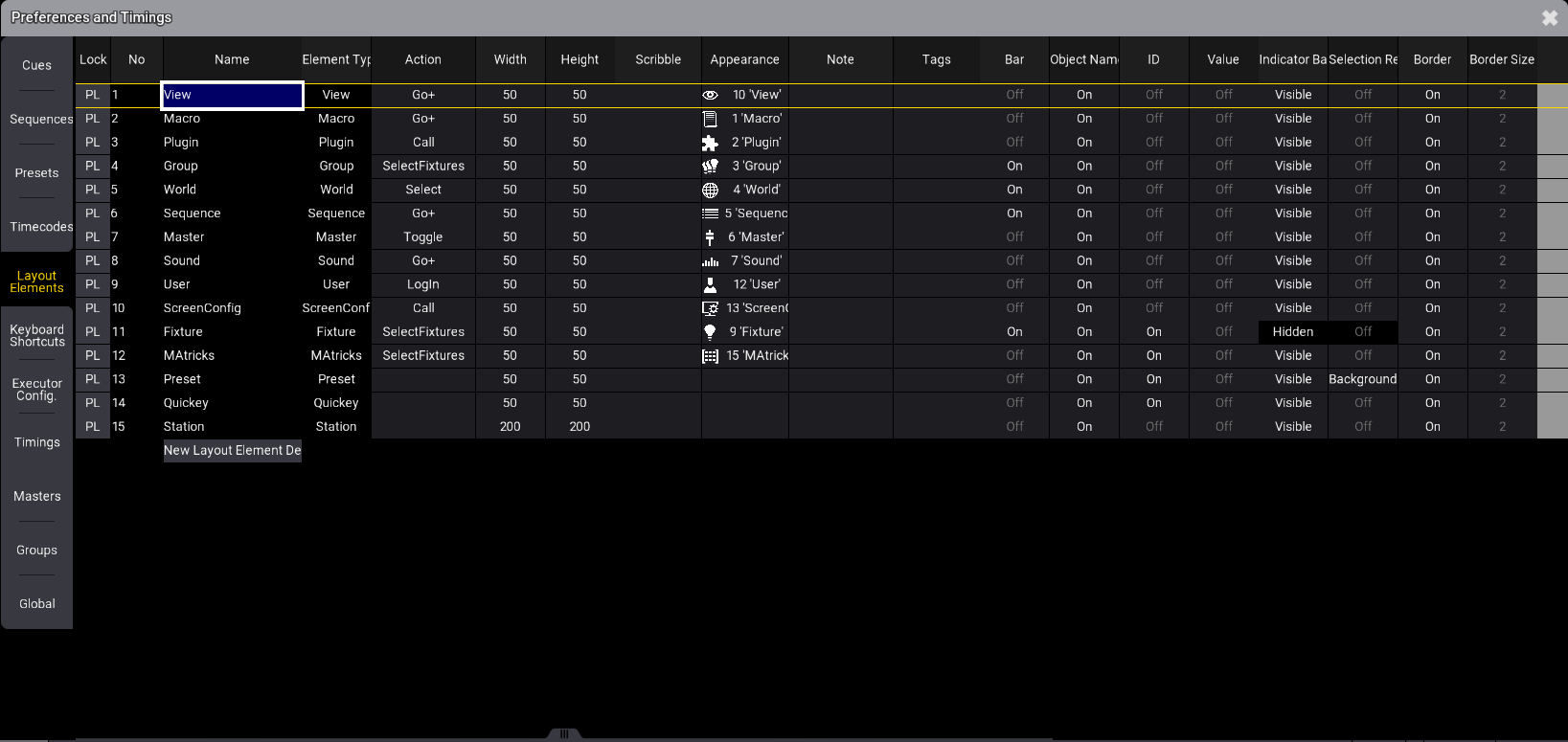

Press Menu  and tap Preferences and Timings, then tap Layout Elements on the left side of the menu:

Arrange the layout pool and the layout viewer on one screen to operate the layouts faster and to have them all at a glance. See Add Window.

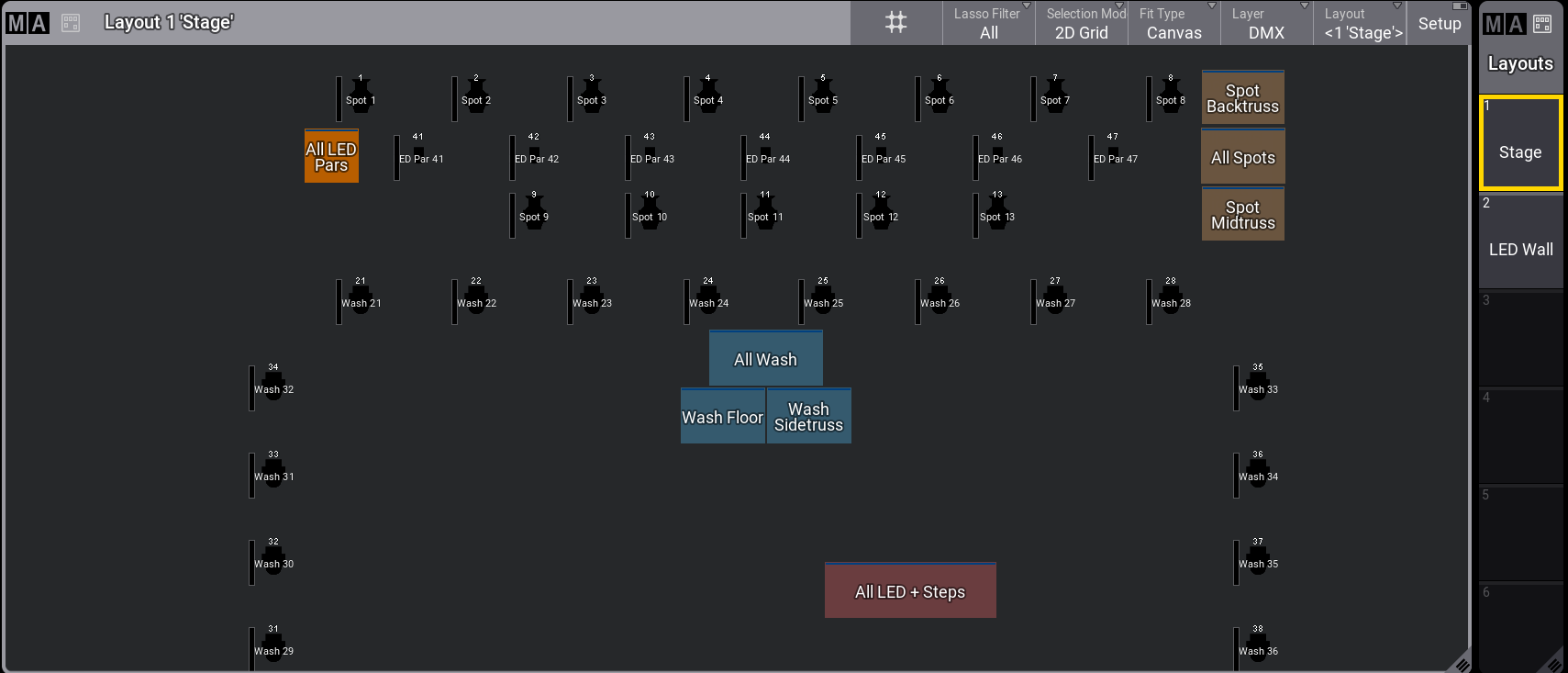

Layout viewer and layout pool

Adding fixtures to Layouts

1. Select the fixtures you want to assign to the layout. The selected fixtures’ selection grid positions are assigned to layouts. For more information, see Selection Grid.
2. Press Assign and tap an empty layout poll object, or tap the area in the layout viewer where you want to assign them.
3. A new layout pool is created with the selected fixtures.
4. Label the new layout pool. See Label Pool Objects.

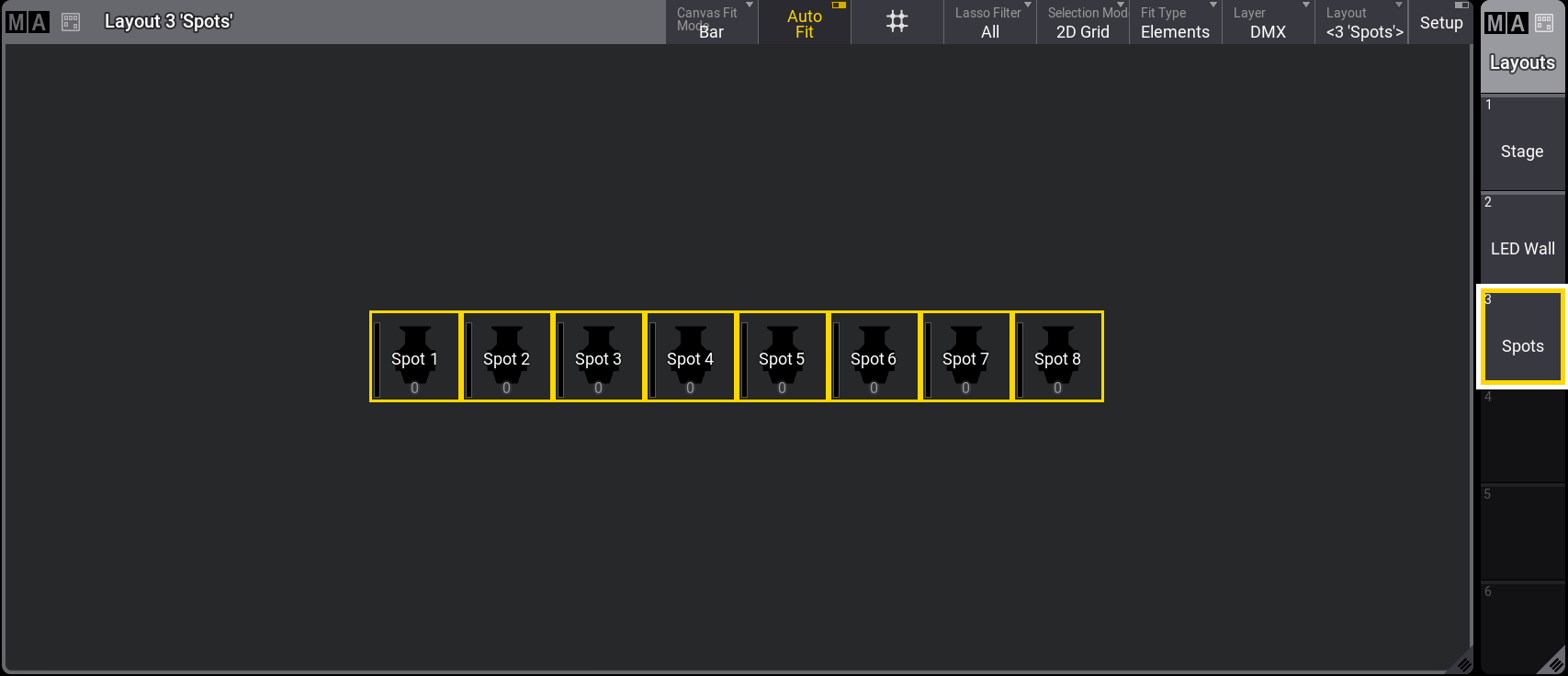

Layout viewer and layout pool

Adding Sub-Fixtures to Layouts

Some fixtures may comprise several sub-fixtures that can also be assigned to layouts.

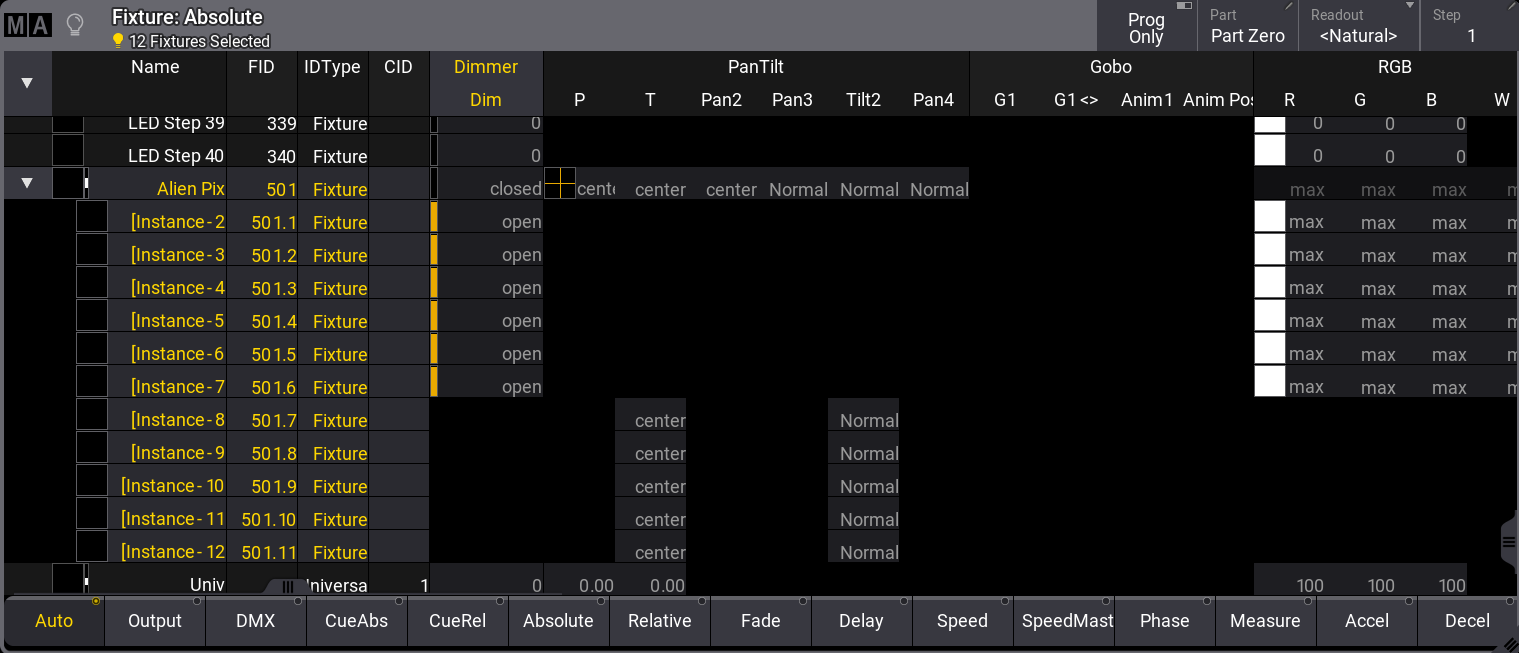

To add sub-fixtures, repeat steps 1 and 2 above; this is what it could look like in the fixture sheet:

1. A new layout pool is created with the selected fixtures.
2. Label the new layout pool. See Label Pool Objects.

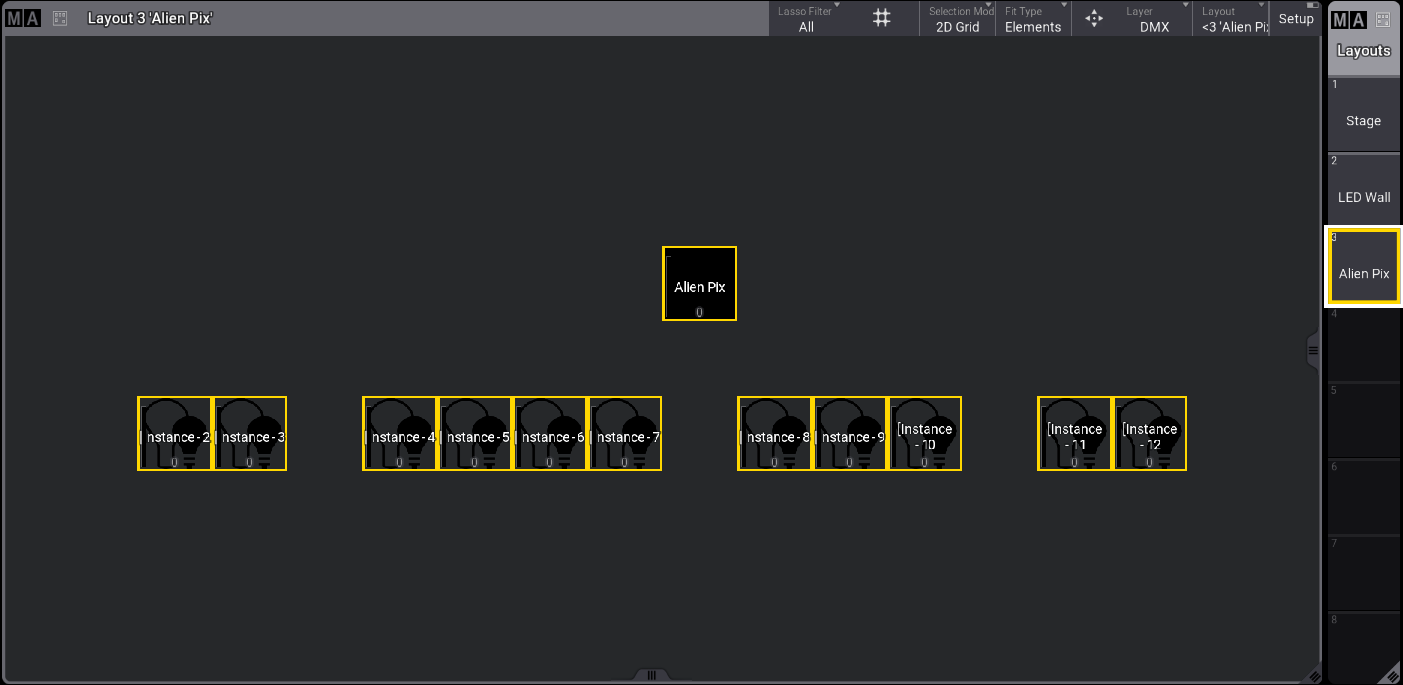

Layout viewer with the prominent fixture and its sub-fixtures added
